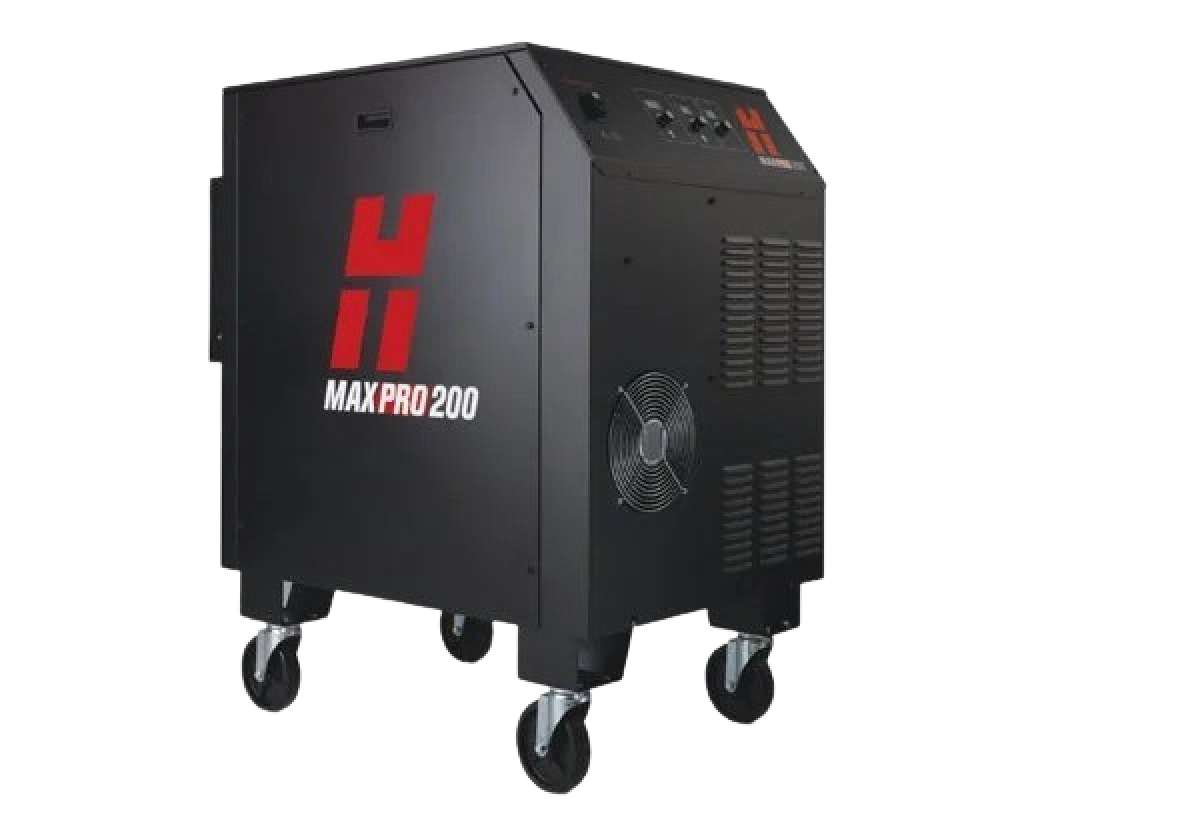

Specifications
Input Voltages | 200/208 VAC, 3-PH, 50 Hz, 108/104 A 220 VAC, 3-PH, 50 – 60 Hz, 98 A 240 VAC, 3-PH, 60 Hz, 90 A 380 VAC, 3-PH, 50 Hz, 57 A 400 VAC, CE, 3-PH, 50 – 60 Hz, 54 A 415 VAC, CE, 3-PH, 50 Hz, 52 A 440 VAC, 3-PH, 50 – 60 Hz, 49 A 480 VAC, 3-PH, 60 Hz, 45 A 600 VAC, 3-PH, 60 Hz, 36 A |
Output Voltage | 50–165 VDC |
Maximum Output Current | 200 A |
Duty Cycle Rating | 100% @ 33 kW, at 40°C (104°F) |
Operating Temperature | -10°C to 40°C (+14°F to +104°F) |
Power Factory | 0.98 @ 33 kW output |
Maximum OCV | 360 VDC |
Dimensions | 102 cm (40.14") H, 69 cm (27.12") W, 105 cm (41.23") L |
Weight | 335 kg (740 lbs) |
Gas Supply | |
Plasma Gas | Air, O2, N2 |
Shield Gas | Air, N2 |
Supply Gas Pressure | 6.2 +/- 0.7 bar (90 +/- 10 psig) |
Operating Data
- Virtually dross-free cutting capacity - mild steel 20 mm (3/4")
- Production pierce capacity - mild steel 32 mm (1 1/4")
- Severance* - mild steel 75 mm (3")
- Bevel - 200 amp consumables support 45° bevel capability
Material | Current (amps) | Thickness (mm) | Approx. Cutting Speed (mm/min) | Thickness (inches) | Approx. Cutting speed (ipm) |
Mild Steel Air Plasma Air Shield | 50 | 1 3 | 8050 3760 | 20 ga 0.135 | 340 110 |
Air Plasma Air Shield | 130 | 6 12 | 3865 2045 | 1/4 1/2 | 150 75 |
Air Plasma Air Shield | 200 | 6 12 20 25 32 50 | 4885 2794 1415 940 630 215 | 1/4 1/2 3/4 1 1 1/4 2 | 190 110 60 35 25 8 |
O2 Plasma Air Shield | 50 | 1 3 | 6775 3650 | 20 ga 0.135 | 270 130 |
O2 Plasma Air Shield | 130 | 6 12 | 3925 2200 | 1/4 1/2 | 150 80 |
O2 Plasma Air Shield | 200 | 6 12 20 25 32 50 | 6210 3415 1920 1430 805 270 | 1/4 1/2 3/4 1 1 1/4 2 | 235 130 80 55 32 10 |
Stainless Steel N2 Plasma N2 Shield | 200 | 12 20 | 2260 1140 | 1/2 3/4 | 80 50 |
Air Plasma Air Shield | 200 | 12 20 | 3050 1520 | 1/2 3/4 | 120 60 |
Aluminum N2 Plasma N2 Shield | 200 | 12 20 | 3370 1630 | 1/2 3/4 | 125 70 |
Air Plasma Air Shield | 200 | 12 20 | 3370 1625 | 1/2 3/4 | 125 70 |
*The thickness that can be severed at approximately 125 mm/min (5 ipm) with reduced cut quality. Cutting at severance thickness should be infrequent.
