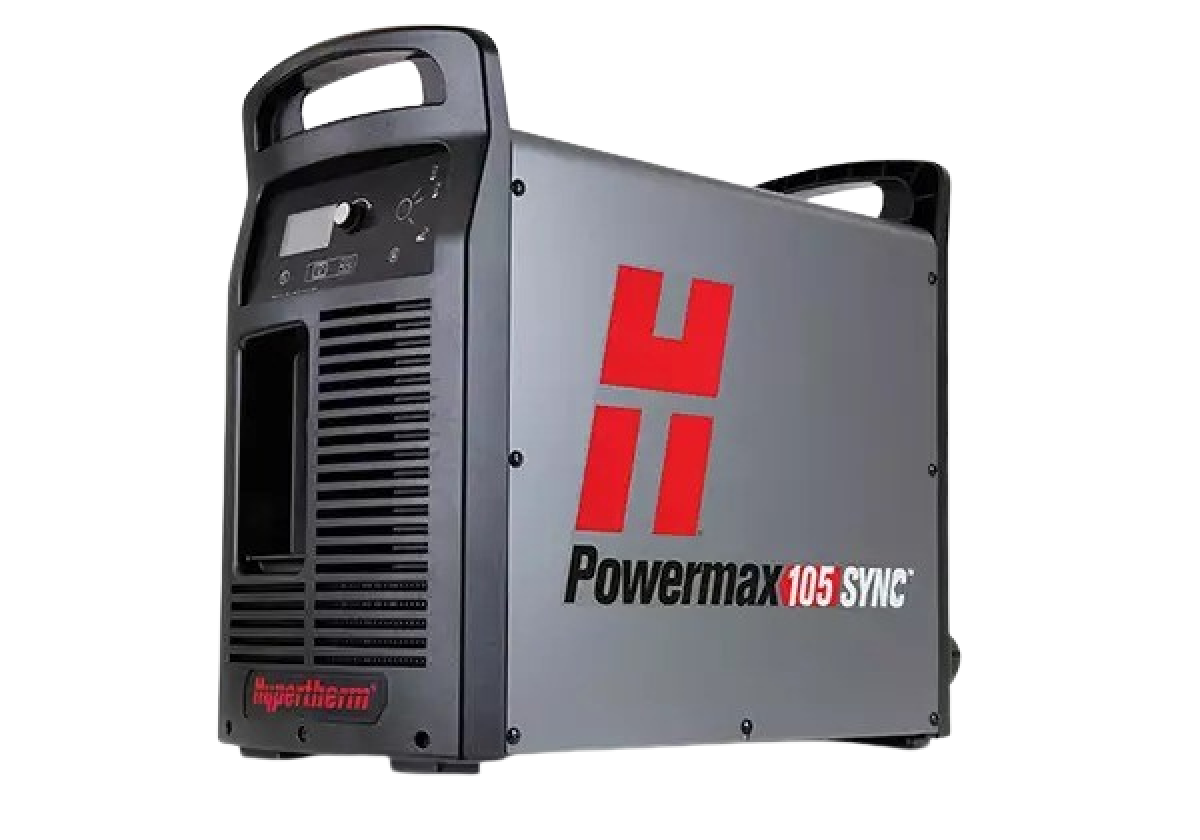

Specifications
Input Voltages | 200–600 V, 3-PH, 50/60 Hz |
Kilowatt Output | 16.8 kW |
Input Current | 200/208/240/480/600 V, 3-PH 58/56/49/25/22 A @ 16.8 kW |
Output Current | 30-105 A |
Rated Output Voltage | 160 VDC |
Duty Cycle @ 104°F | 70% @ 105 A, 240 V, 3-PH 80% @ 105 A, 480–600 V, 3-PH 100% @ 94 A, 480–600 V, 3-PH 100% @ 88 A, 240 V, 3-PH |
Open Circuit Voltage (OCV) | 300 VDC |
Dimensions with Handles | 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H) |
Weight w/7.6 m (25′) torch | 45.3 kg (95 lbs.) |
Gas Supply | Clean, dry, oil-free air or nitrogen |
Optimum Inlet Gas Pressure | 7.6–8.3 bar (110–120 psi) |
Minimum Inlet Gas Pressure | 5.5 bar (80 psi) |
Recommended Inlet Gas Flow Rate | Cutting: 260 I/min @ 5.9 bar (550 scfh, 9.2 scfm @ 90 psi) Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.2 scfm @ 70 psi) |
Input Power Cable Length | 3 m (10′) |
Power Supply Type | Inverter - IGBT |
Engine Drive Requirement | 30 kW for a full 105 A output |
Certifications | CSA-Certified for use in the Americas and Asia, except China |
Warranty | Power Supply: 3 years Torches: 1 year |
Operating Data
Capacity | Thickness | Cut Speed |
Recommended | 32 mm (1-1/4″) | 500 mm/min (20 ipm) |
38 mm (1-1/2″) | 250 mm/min (10 ipm) | |
Severance (Hand Cutting) | 50 mm (2″) | 125 mm/min (5 ipm) |
Pierce* | 22 mm (7/8″) |
*Pierce rating for handheld cutting or mechanized cutting with programmable torch height control.
Maximum Removal Gouging
Capacity | Metal Removal Rate | Groove Profile |
Typical Gouge | 8.6 kg (19.1 lbs.) per hour | 6.6 mm D x 6.0 mm W (0.26″ D x 0.24″ W) |
