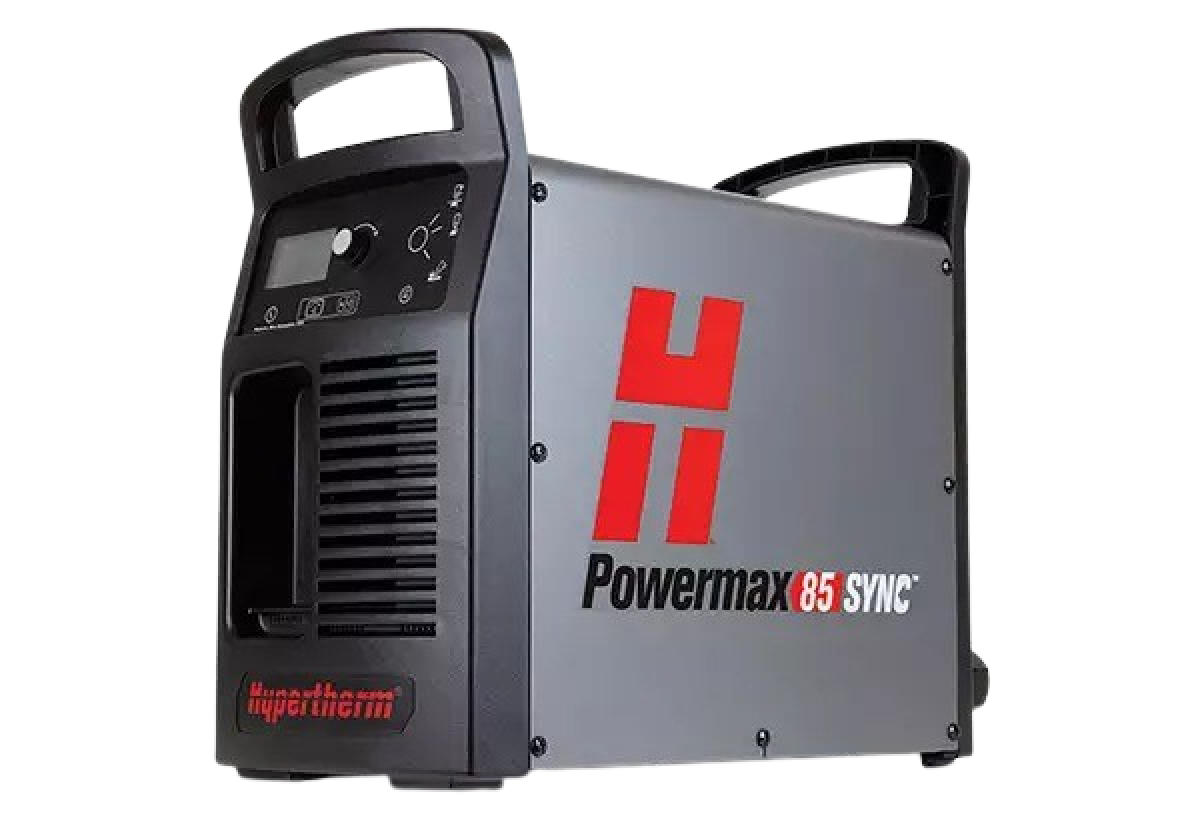

Specifications
Input Voltages | 200–480 V, 1-PH, 50/60 Hz 200–600 V, 3-PH, 50/60 Hz |
Kilowatt Output | 12.2 kW |
Input Current | 200/208/240/480, 1-PH 70/68/58/29 A @ 12.2 kW 200/208/240/480/600 V, 3-PH 42/40/35/18/17 A @ 12.2 KW |
Output Current | 25-85 A |
Rated Output Voltage | 143 VDC |
Duty Cycle @ 104°F | 60% @ 85 A, 230–600 V, 3-PH 60% @ 85 A, 480 V, 1-PH 50% @ 85 A 240 V, 1-PH 50% @ 85 A, 200–208 V, 3-PH 40% @ 85 A, 200–208 V, 1-PH 100% @ 66 A, 230–600 V, 1/3-PH |
Open Circuit Voltage (OCV) | 305 VDC |
Dimensions with Handles | 483 mm D; 233 mm W; 430 mm H (19″ D; 9.2″ W; 17″ H) |
Weight w/7.6 m (25′) torch | 32 kg (67 lbs.) |
Gas Supply | Clean, dry, oil-free air or nitrogen |
Optimum Inlet Gas Pressure | 7.6–8.3 bar (110–120 psi) |
Minimum Inlet Gas Pressure | 5.2 bar (75 psi) |
Recommended Inlet Gas Flow Rate | Cutting: 210 I/min @ 5.9 bar (450 scfh, 7.5 scfm @ 85 psi) Gouging: 210 I/min @ 4.8 bar (450 scfh, 7.5 scfm @ 70 psi) |
Input Power Cable Length | 3 m (10′) |
Power Supply Type | Inverter - IGBT |
Engine Drive Requirement | 20 kW for a full 85 A output |
Certifications | CSA-Certified for use in the Americas and Asia, except China |
Warranty | Power Supply: 3 years Torches: 1 year |
Operating Data
Capacity | Thickness | Cut Speed |
Recommended | 25 mm (1″) | 500 mm/min (20 ipm) |
32 mm (1-1/4″) | 250 mm/min (10 ipm) | |
Severance (Hand Cutting) | 38 mm (1-1/2″) | 125 mm/min (5 ipm) |
Pierce* | 20 mm (3/4″) |
*Pierce rating for handheld cutting or mechanized cutting with programmable torch height control.
Maximum Removal Gouging
Capacity | Metal Removal Rate | Groove Profile |
Typical Gouge | 8.2 kg (18.2 lbs.) per hour | 3.5 mm D x 6.6 mm W (0.14″ D x 0.26″ W) |
