Key Features & Benefits
Supports Pipe Up to 60" Diameter - Built to manage the demands of oversized pipe with confidence, accuracy, and control.
Extreme Cutting Lengths - Standard lengths from 10’ up to 42’, with custom options available for longer runs.

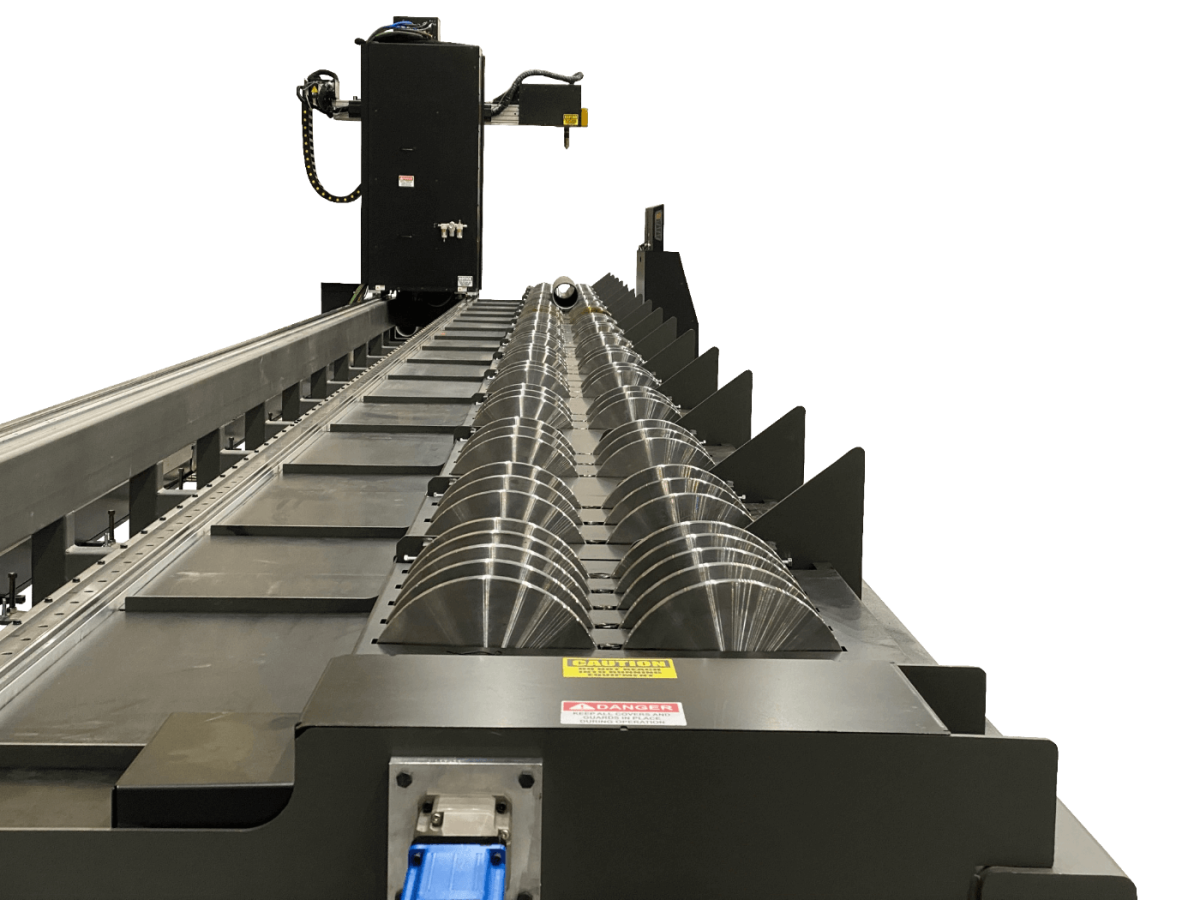

Heavy-Duty Structural Integrity - Solid steel construction with precision laser-aligned support rollers for maximum load-bearing strength and cut consistency.
Precision Motion Over Long Distances - High-performance linear rails and air-assisted anti-backlash transmissions maintain smooth, accurate motion from end to end.
Advanced Rotary Drive System - Planetary gearbox and high-precision ball screw Z-axis deliver tight tolerances and responsive torch movement—even on demanding bevel cuts.
Protected Systems for Harsh Environments - Protective bellows and enclosed cable carriers extend machine life and prevent debris-related downtime.
Technical Specifications
Feature | Specification |
Pipe Diameter Capacity | 3-60” |
Effective Cutting Length | 10-42’ |
Positioning Accuracy | ±0.007" |
Repeatability | ±0.002" |
Max Traverse Speed | 800 ipm |
Max Tools | 1 (plasma) |
Cutting Modes | Plasma. Manual/automated bevel (optional). High-definition plasma (optional). |
Available Cutting Systems | Powermax 45, 65, 85, 105, and 125, Max Pro 200, XPR 170-460 |
Options & Add-Ons
Enhance your Magnum CNC pipe cutter with a range of optional features, torch types, and process integrations designed to meet your exact production needs.
- Manual or Automated 4 & 5-Axis Bevel Cutting
- Non-Rotational Hole Cutting
- Standard Plasma or High-Definition Plasma Cutting
- Chuck or Chuck-Less Operation
- Fume Extraction Systems
- Through-Material Water Flow System
Built for Heavy Pipe, Built Around You
Every Magnum is engineered to order with your application in mind.
Whether you’re processing large-bore pipe for infrastructure, industrial, or energy projects, Lone Star Cutting Solutions works directly with your team to build a system that fits your facility, capacity needs, and long-term goals.
From base configuration to torch system, everything is tailored to support your workflow.
Financing Available
Ask about tailored financing programs to help you bring Magnum-level power into your operation with flexible monthly payment options.
Talk to a CNC Rotary Cutting Specialist

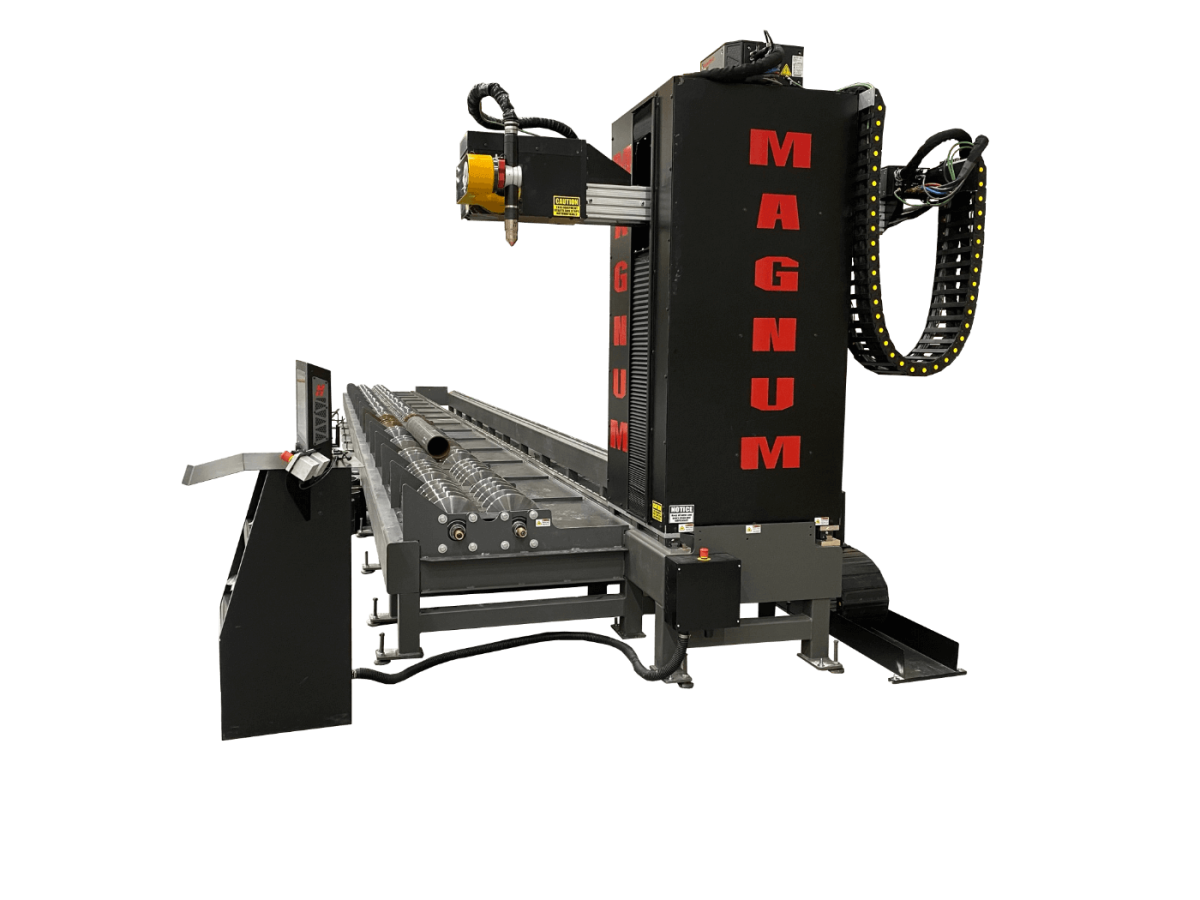

Contact Lone Star Cutting Solutions to learn how the Magnum CNC plasma pipe cutter can be customized to your exact needs.
