Key Features & Benefits
Industrial Motion Control - Helical rack-and-pinion drives with air-assisted, anti-backlash transmissions deliver precision positioning and repeatability.
Servo-Driven Dual-Y Axis - High-torque, AC brushless servos power both sides of the Y-axis for smooth, accurate movement under heavy load.
Torch Height Control - Leadscrew-driven Z-axis, combined with an automated torch height controller, ensures clean and reliable cuts, even on uneven surfaces.
Oversized Gantry Build - Supported by an 8" × 8" thick-wall steel tubing foundation and all-steel gantry, this table withstands high-volume, demanding use.
Enclosed Cable Path - A fully enclosed cable track protects hoses, wires, and controls for long-term reliability.
Multi-Tool & Bevel Ready - Precision linear rails accommodate multiple tool heads, including 5-axis bevel, rotary, drilling, and scribing.
Technical Specifications
Feature | Specification |
Table Sizes | Standard: 4'x8', 5'x10', 6'X12', 8'X24', 10'x20', 10'x24' |
Positioning Accuracy | ±0.007" |
Repeatability | ±0.002" |
Gantry Clearance | Over 6″ |
Max Traverse Speed | Up to 1,500 IPM |
Available Torch Systems | Powermax 45–125, MaxPro 200, XPR 170–460, HPR 800 |
Cutting Modes | Plasma, Oxy-Fuel, Bevel, Rotary, Drilling, Scribe |
Add-Ons & Custom Options
Tailor the Ranger to your operational needs:
- Automated 5-axis bevel head
- Multi-torch Oxy-Fuel capability

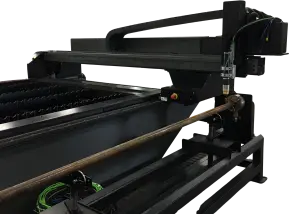

- Rotary cutting setups (round, square, angle, etc.)
- Bladder-controlled waterbed
- Downdraft fume control (single or zoned)
- Drill and scribe toolheads
- Customized bed sizes and environments
- Future-proof, modular configurations to scale with your shop
Discuss Customization with a Cutting Specialist
Every Ranger setup is tailored to your workflow—from shop layout to production goals. Talk with a Lone Star Cutting Solutions expert to build the perfect match for your operation.
