Key Features & Benefits
Industrial Motion System - Helical rack-and-pinion drives with air-assisted, anti-backlash transmissions provide ±0.007″ accuracy and ±0.002″ repeatability across every job.
Automated Torch Height Control - A dedicated leadscrew Z-axis paired with an integrated torch height controller ensures clean, consistent cuts—even on warped or uneven material.

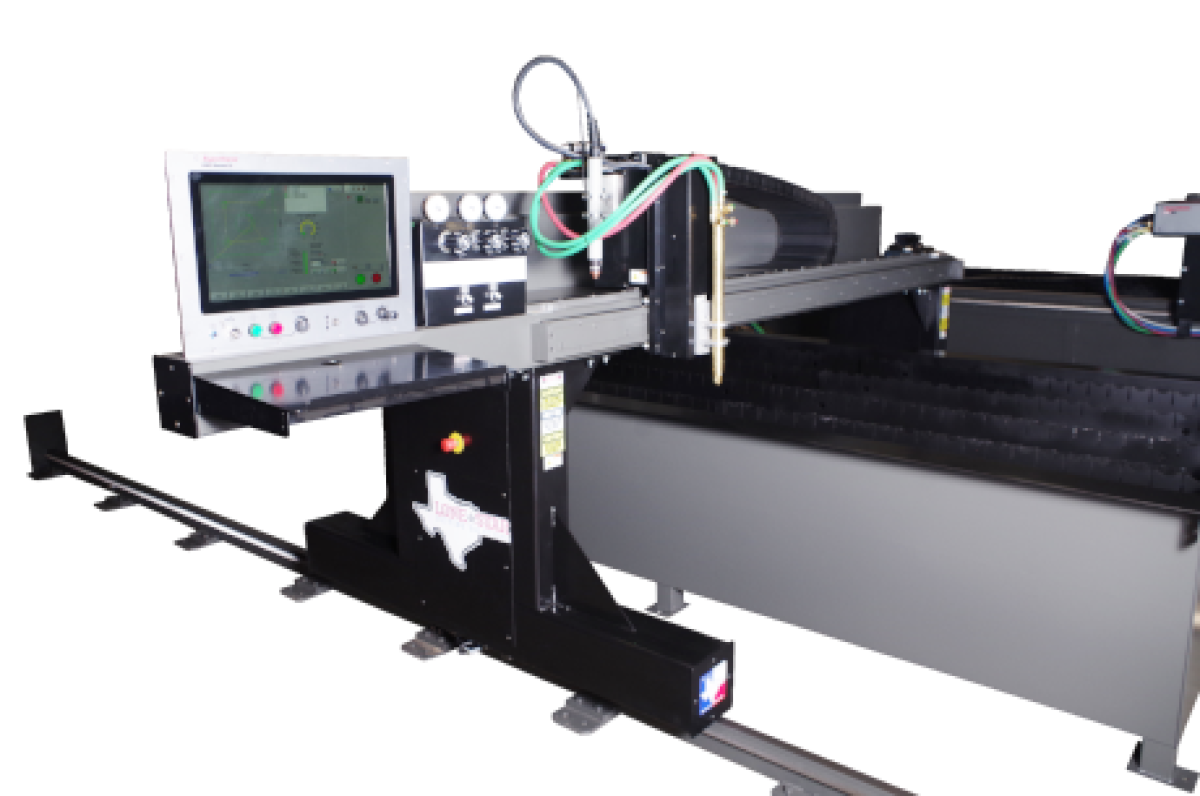

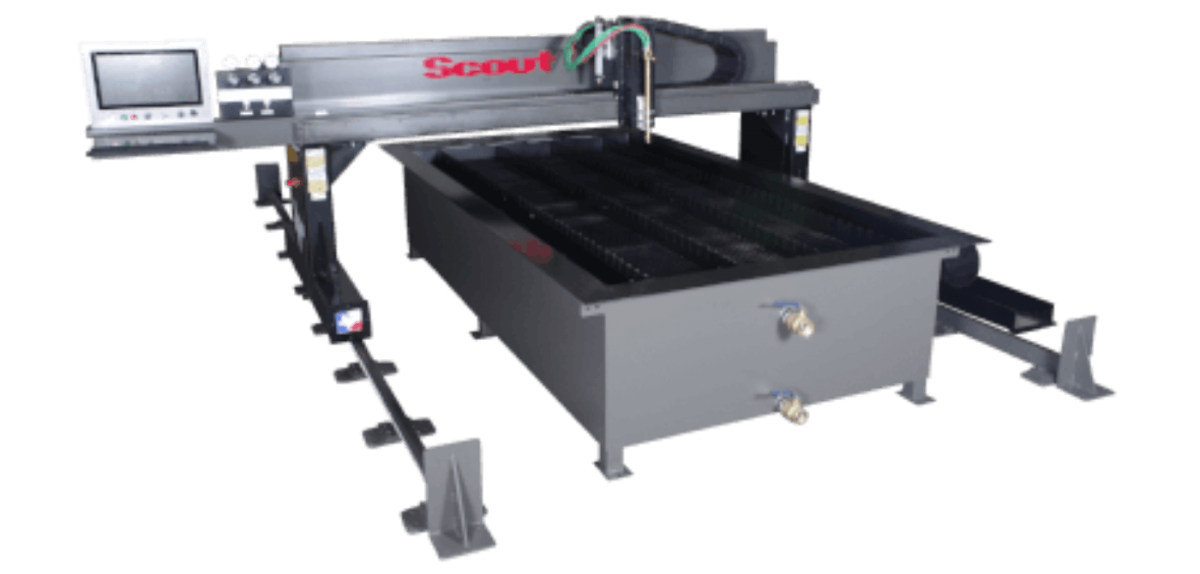

Heavy-Duty Gantry Construction - The gantry rides on a foundation of 6″×6″ thick-walled steel tubing, supported by a low-profile precision rail system—ideal for large-scale or custom-bed installations.
Integrated Cable Track System - All wires, hoses, and cables are protected inside a fully enclosed track for safer operation and long-term reliability.
Feature | Specification |
Table Sizes | Widths: 5', 6', 8', 10', 12' Lengths: Up to 40' |
Positioning Accuracy | ±0.007" |
Repeatability | ±0.002" |
Gantry Clearance | Over 6″ |
Max Traverse Speed | Up to 1,000 IPM |
Available Cutting Systems | Powermax 45, 65, 85, 105, 125, Max Pro 200, XPR 170-460 - HPR800 |
Cutting Modes | Plasma, Oxy, Bevel, Rotary (round, square, rectangle, angle) |
Add-Ons & Custom Options
The Scout III supports a wide range of cutting technologies and can be modified to meet the needs of any industrial workflow:
- High-definition plasma and multiple oxy-fuel torches
- Rotary attachments for pipe, angle, and structural material
- Custom bed configurations or integration with your existing table
- Expandable Y-axis processing length for future scalability
Discuss Customization with a Cutting Specialist
Need something custom? The Scout III can be designed around your unique process, space constraints, or production goals.
Speak with a Lonestar Cutting Solutions rep to get started.
Financing Options Available
Financing is available for all Scout III models. Whether you're scaling up or replacing aging equipment, we’ll work with you to find a financing solution that aligns with your business needs.
