Key Features and Benefits
Welded Steel Frame – Built for durability and precision; no bolt-together tubing

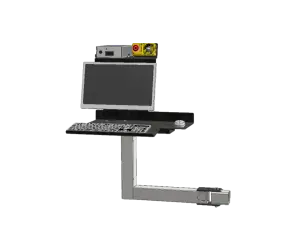

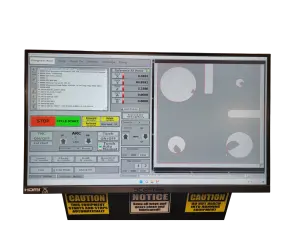

Industrial CNC Controller – Offers real-time torch control and dynamic toolpaths
Modular Design – Add pipe cutting, rotary tools, or custom power as your needs grow
Precision Motion System – Combines rack and pinion gearing with lead screw motion for tight, accurate control
Lead Screw Lifter – Provides smooth, consistent Z-axis movement for dependable torch height control
Feature | Specification |
Table Sizes | 4'x4', 4'x8', 5'x10' |
Positioning Accuracy | ±0.007" |
Repeatability | ±0.002" |
Gantry Clearance | 4″ |
Max Traverse Speed | 800 IPM |

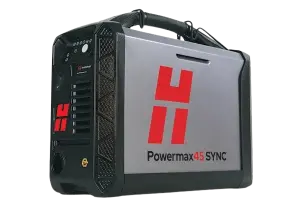

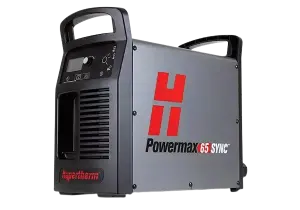

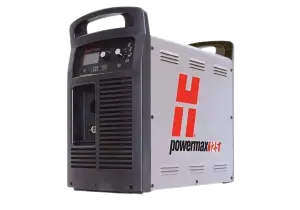

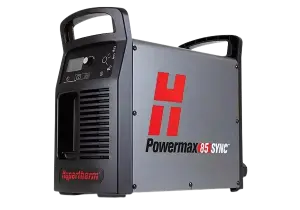

Available Torch Systems | Powermax 45, 65, 85, 105, or 125 |
Cutting Modes | Supports Plasma and Scribe tools |
Precision Motion System - Dual‑side rack‑and‑pinion servo drives provide cutting accuracy of ±0.007″ and repeatability of ±0.002″—ensuring your parts meet spec, every time.

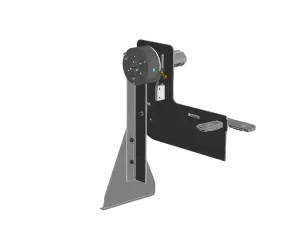

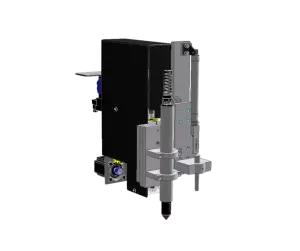

Lead Screw Torch Height Control - A dedicated lead screw Z‑axis lifter maintains consistent torch height for clean, stable cuts on every job.
Rugged, Industrial Build - Engineered with a fully welded steel frame, linear guide rails, and a heavy-duty 3″ × 3″ extruded aluminum gantry for long-term durability.
Integrated Water Table - Comes standard with a 12″ deep waterbed designed to minimize smoke, reduce heat distortion, and simplify cleanup—no extra fume extraction needed.
Explore Custom Options with an LSCS Representative
Every table is built to order and tailored to your workflow. Whether you’re just getting started or upgrading an existing setup, our team will guide you through every decision from table size to power source.
Financing Available
We offer flexible financing through trusted partners with fast approval timelines. Get your table on the floor and cutting without tying up cash flow.
