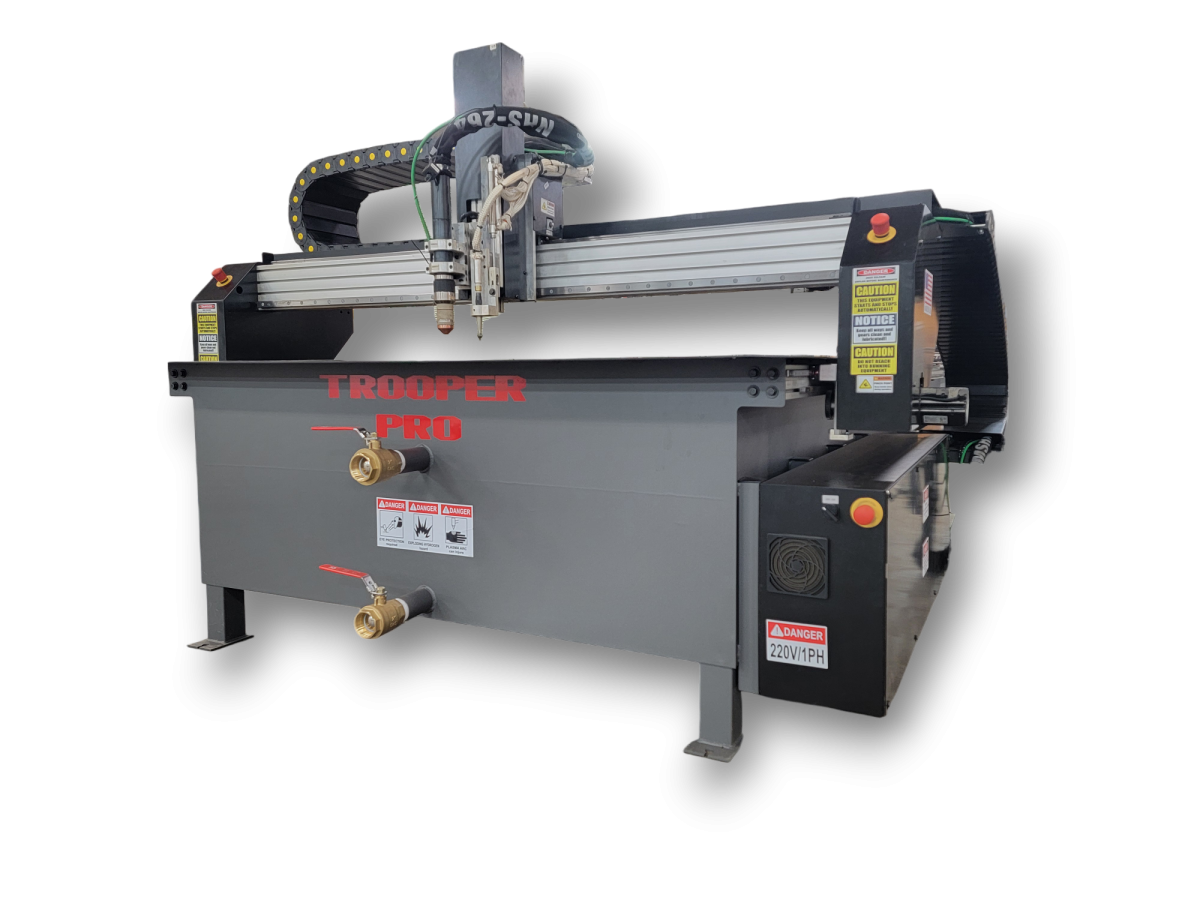

Core Features and Benefits
Precision Motion System – Dual-side rack and pinion servo motor drives ensure consistent positioning accuracy around ±0.007" and repeatability at ±0.002"
Automatic Lead Screw Torch Height Control – Delivers smooth, reliable Z-axis adjustments for stable cutting
Heavy-Duty Construction – Fully welded steel frame, linear guide rails, and reinforced 3" × 6" extruded aluminum bridge for long-term stability
Modular Design – The Trooper can be customized to meet the specific demands of your use case.
Feature | Specification |
Table Sizes | 4'X8’, 5'X10', 6'X12' & Larger |
Positioning Accuracy | ±0.007" |
Repeatability | ±0.002" |
Gantry Clearance | 6″ |
Max Traverse Speed | 1000 IPM |

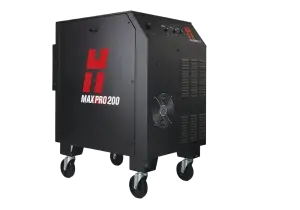

Available Torch Systems | Powermax 45, 65, 85, 105, or 125, Max Pro 200, XPR170, XPR300 |
Cutting Modes | Plasma, Oxy, Scribe, Bevel, Drilling (up to 2 tools) |
Pedestal Mounted Controller – Ergonomically position the control screen near your work for improved accessibility and a cleaner work setup.
Air Scribe Tool – Accurately mark parts with bend lines, labels, or layout information without changing tools.
Pipe/Rotary Attachment – Expands your capabilities by enabling efficient cutting of pipes and tubing with full CAM support.
Slag Tray (Parts Catcher) – Collects offcuts and debris beneath the table slats, improving cleanup efficiency and preventing material buildup.
Oxy-Fuel Attachment – Adds oxy-fuel cutting capability for thick steel applications that exceed plasma limits.
Downdraft Table – Integrated fume control with electronically controlled zones and baffles, plus standard exhaust outlet for cleaner cutting environments.
Customize Your Build
Explore configuration options—from cutting routines to software and customization support.
We’ll help you build the right setup for your workflow.
Financing Options
We offer fast and flexible financing—get your machine installed and cutting without a long wait.
